Matrix DR Stationary Data Recorder
DesignationMATRIX DR
Records process data on a paperless chart recorder with an easy to use interface and software, expandable to 80 fully isolated analogue inputs.
- Expandable to 80 inputs by adding modules
- Fully isolated analogue inputs
- Non-modifiable data storage with built-in redundancy
- Non-volatile flash memory
- Tabular display, bar charts and large, easy to read numeric values
- Modular design with high resolution 5.7 in, 12.1 in, 15 in and 17 in displays
- Surface mounted colour touchscreen with DIN rail input modules
- VR Manager software tools included
- Modbus RTU and Modbus TCP communications
- Ethernet communications with built-in remote web viewer
- Totalisers, input timers and input average calculations
- Collect, view and print recorded data, or read it from a removable DR flash card

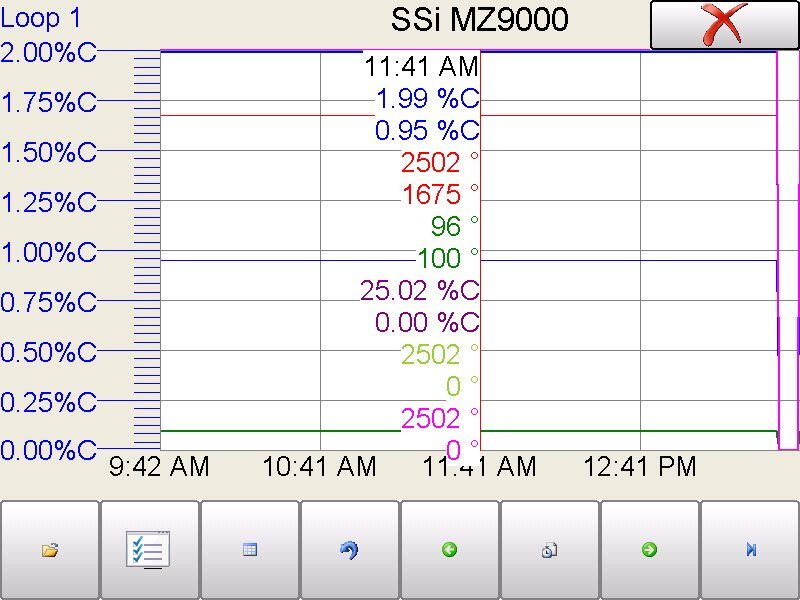

- Historical data viewed as trends or as a table
- Handwritten and typed notes for CQI-9 verification, in a searchable note and load database
- Batch database with searchable load records
- Data export tools and configurable data display points
- Analogue input statistics: minimum, maximum, average and standard deviation
- Several DR recorders selected from within VR Manager
- User defined templates for viewing and user defined input alarms
- User curves and an expression wizard for inputs that are hard to configure
- Gauge readings compatible with vacuum levels
- Expandable relay outputs available
- Easy built-in calibration
- Keyboard and mouse compatible
- Charts printed on demand only, when they are actually needed
- Analogue inputsExpandable to 80 through additional modules
- Input isolationFully isolated universal analogue inputs
- Sampling rate1 second
- DisplayHigh resolution colour touchscreen 5.7 in, 12.1 in, 15 in or 17 in
- CommunicationsModbus RTU and Modbus TCP, Ethernet
Opis
Paperless chart recording with easy to use software for displaying and printing historical data from a PC.
The Matrix DR is built from DIN rail mounted input modules and a surface mounted colour touchscreen, so the recorder can be sized to the installation and grown later by adding modules. Data is written to non-volatile flash memory with built-in redundancy, which replaces awkward paper chart recorders and keeps the record available for CQI-9 and AMS 2750 audits.
The included VR Manager software collects, views and prints recorded data, reads it from DR units or from a removable DR flash card, and shows historical data as trends or as a table, together with handwritten and typed operator notes.
Dane techniczne
| Analogue inputs | Expandable to 80 through additional modules |
|---|---|
| Input isolation | Fully isolated universal analogue inputs |
| Sampling rate | 1 second |
| Display | High resolution colour touchscreen 5.7 in, 12.1 in, 15 in or 17 in |
| Communications | Modbus RTU and Modbus TCP, Ethernet |
| Data storage | Non-volatile flash memory with built-in redundancy |
| Compliance | AMS 2750, notes for CQI-9 verification |
| Software | VR Manager tools included |
| Mounting | Surface mounted touchscreen, DIN rail input modules |
