Szafy gazowe
Heat treatment furnaces
Gas and Atmosphere Control Systems
DesignationSzafy gazowe

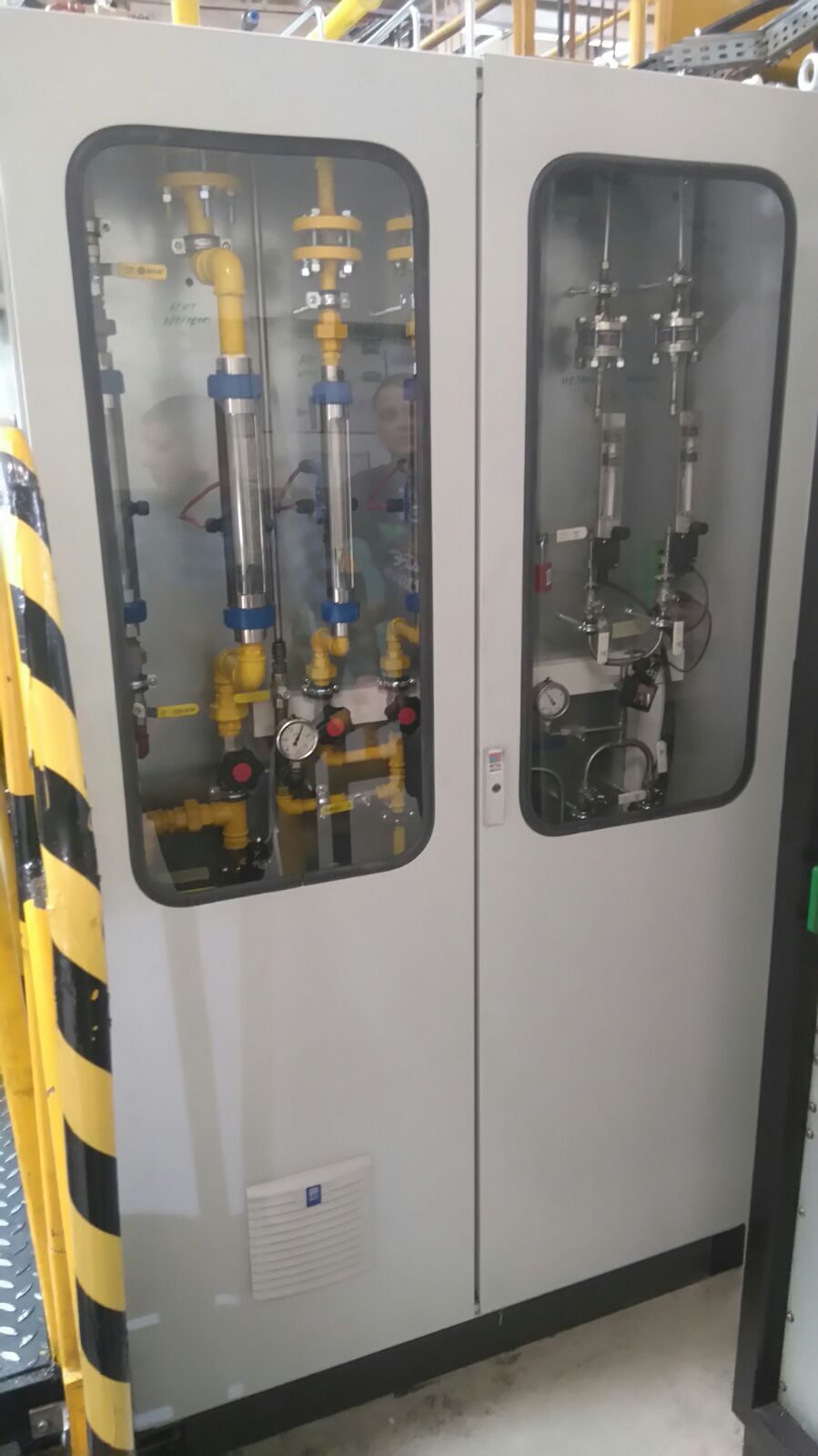

Complete gas cabinets and panels for measuring, regulating and recording the gas flows that make up a furnace atmosphere, manually or fully automatically.

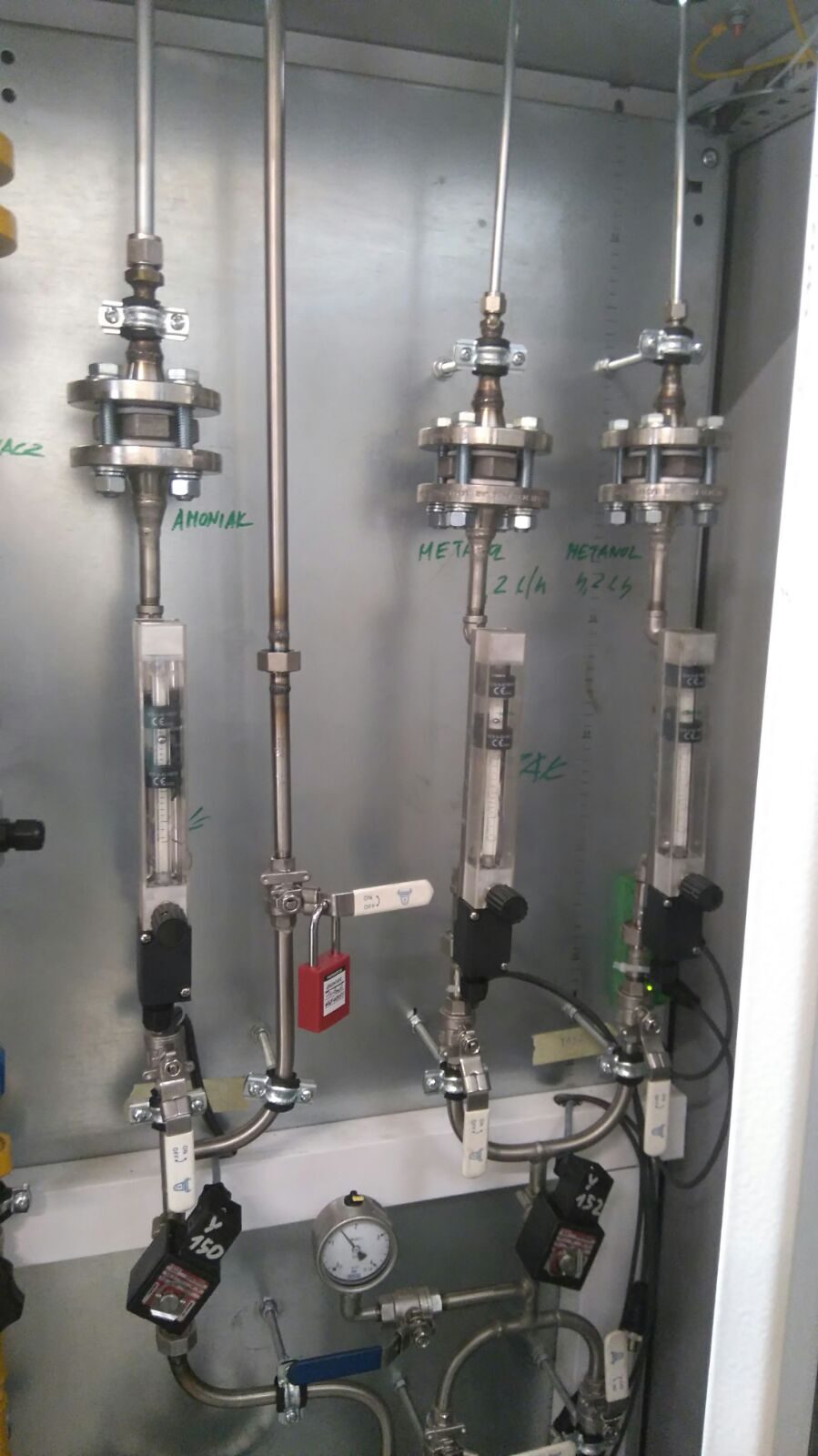

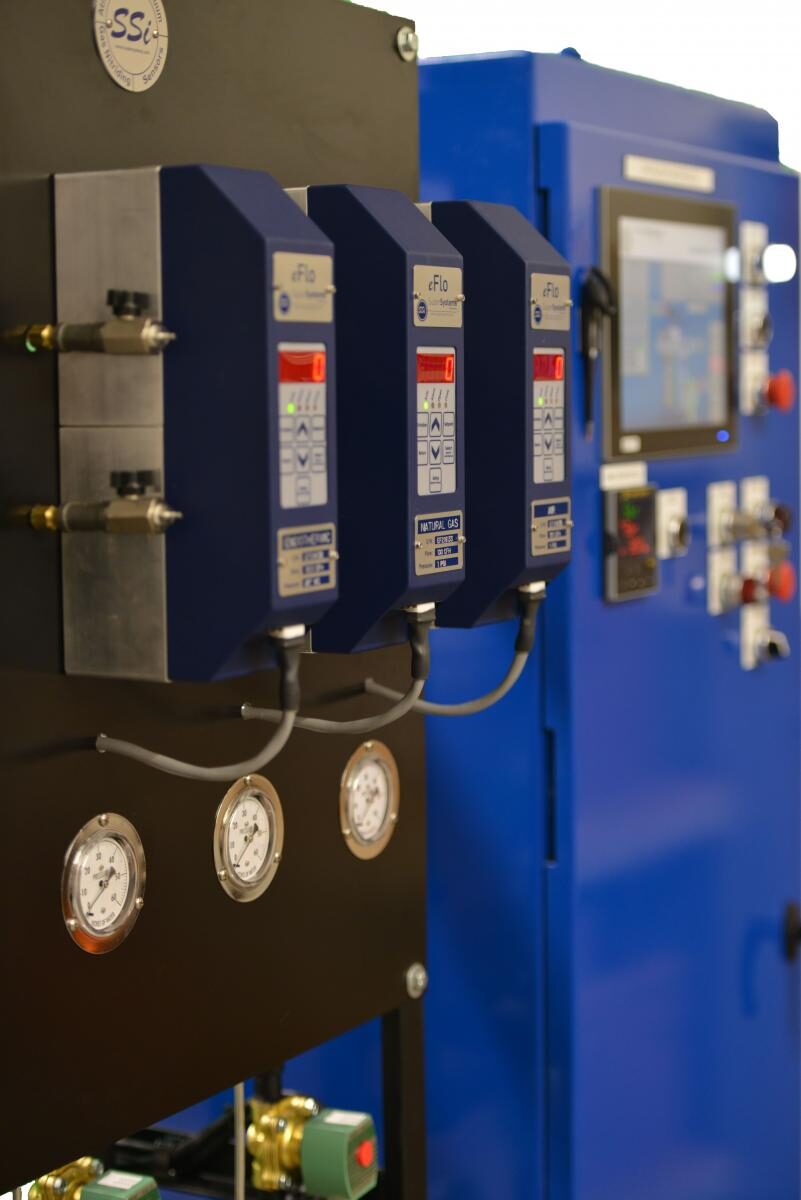

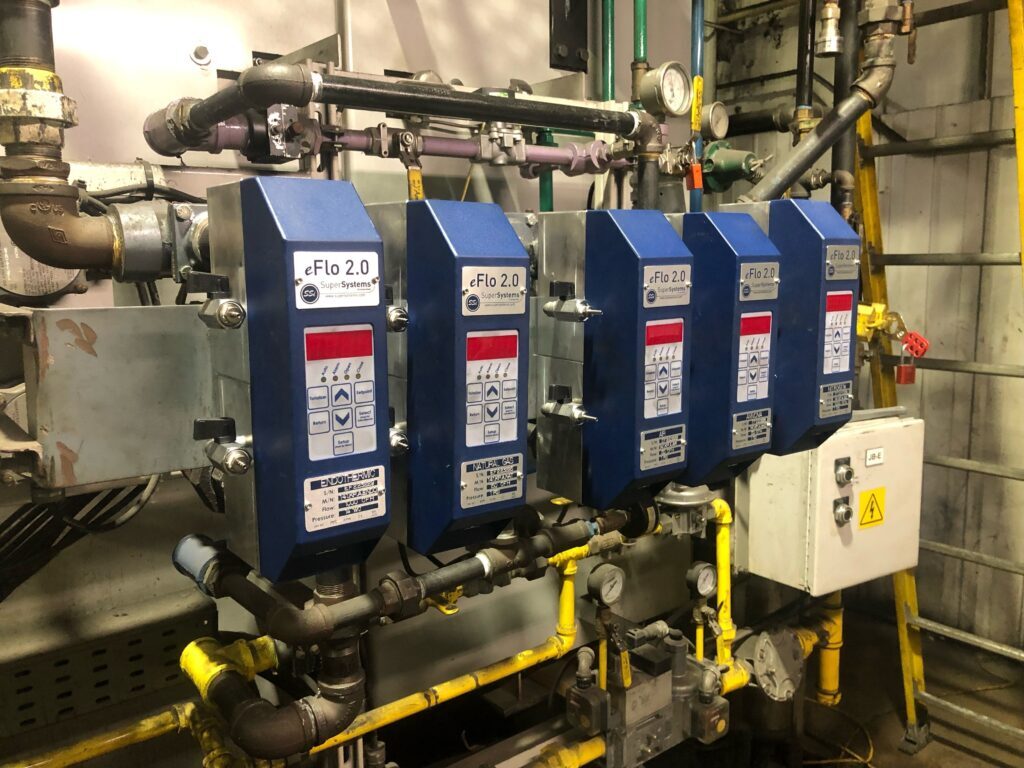

- Manual flow regulation with glass rotameters, or fully automatic regulation based on SSi eFlo mass flow meters
- Gas panels for endothermic atmospheres, nitrogen and methanol, nitriding, nitrogen with natural gas or propane and other mixtures
- Flow measurement and archiving for process documentation
- Tested and checked before delivery
- Scope of supplyOn request, to the atmosphere and furnace specification
- Flow regulationManual with rotameters or automatic with eFlo mass flow meters
- AtmospheresEndothermic gas, nitrogen and methanol, ammonia, nitrogen with natural gas or propane
Opis
Complete gas panels and gas cabinets for the full control, regulation, measurement and archiving of gas and atmosphere flows in heat treatment furnaces.

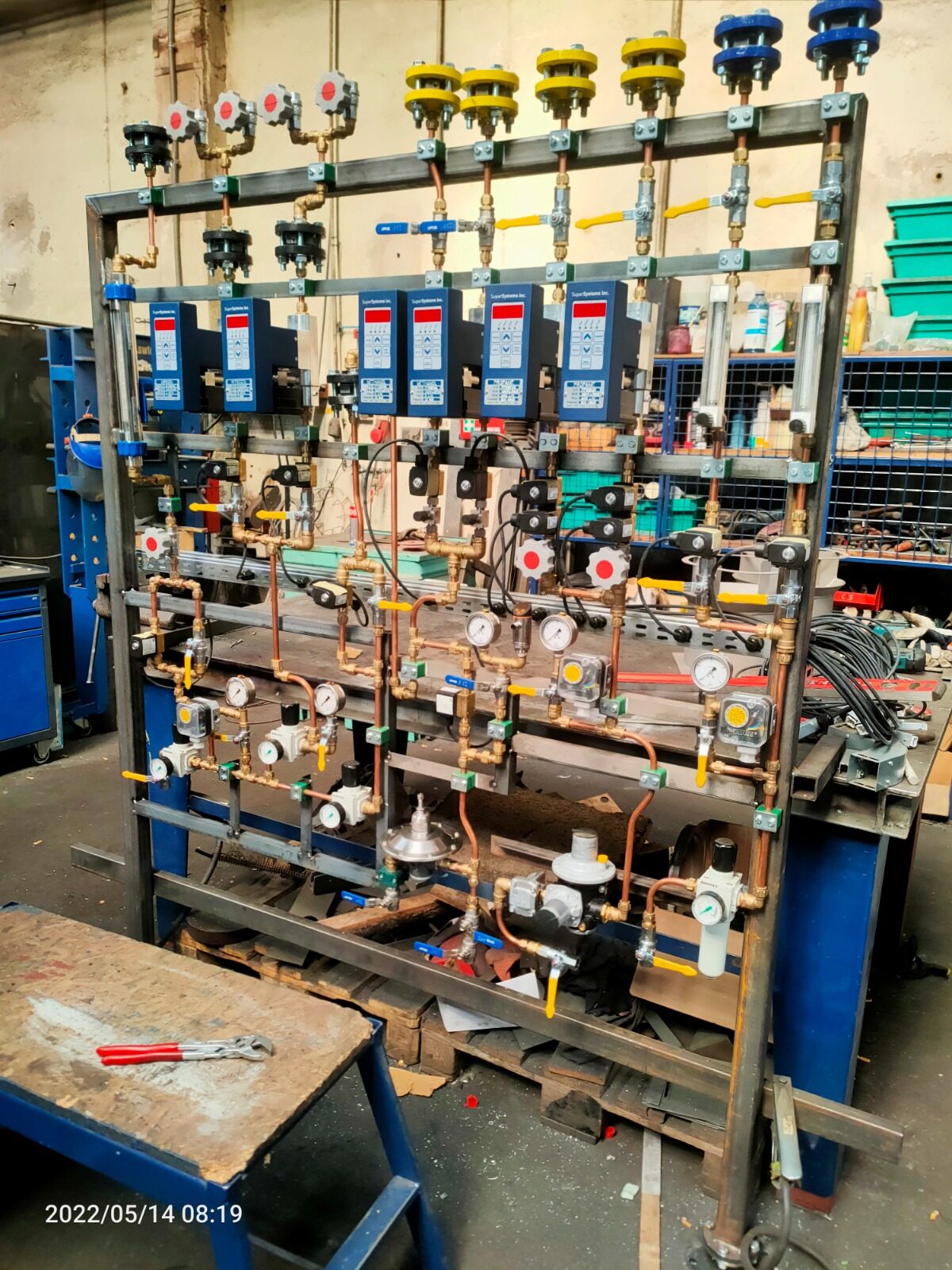

Each panel is built for the atmosphere and the furnace it serves, from a simple manual rotameter board through to a fully automatic assembly with mass flow meters, recipe driven set points and continuous flow recording.
Dane techniczne
| Scope of supply | On request, to the atmosphere and furnace specification |
|---|---|
| Flow regulation | Manual with rotameters or automatic with eFlo mass flow meters |
| Atmospheres | Endothermic gas, nitrogen and methanol, ammonia, nitrogen with natural gas or propane |
Applications
It works where the atmosphere decides the quality of the case
The probe measures and controls the carbon potential in controlled atmospheres, whatever the furnace design.
Furnace types
01Carburising and carbonitriding furnaces
02Nitriding and ferritic nitrocarburising furnaces
03Nitrogen and methanol atmospheres
04Retrofit of existing gas supply lines
